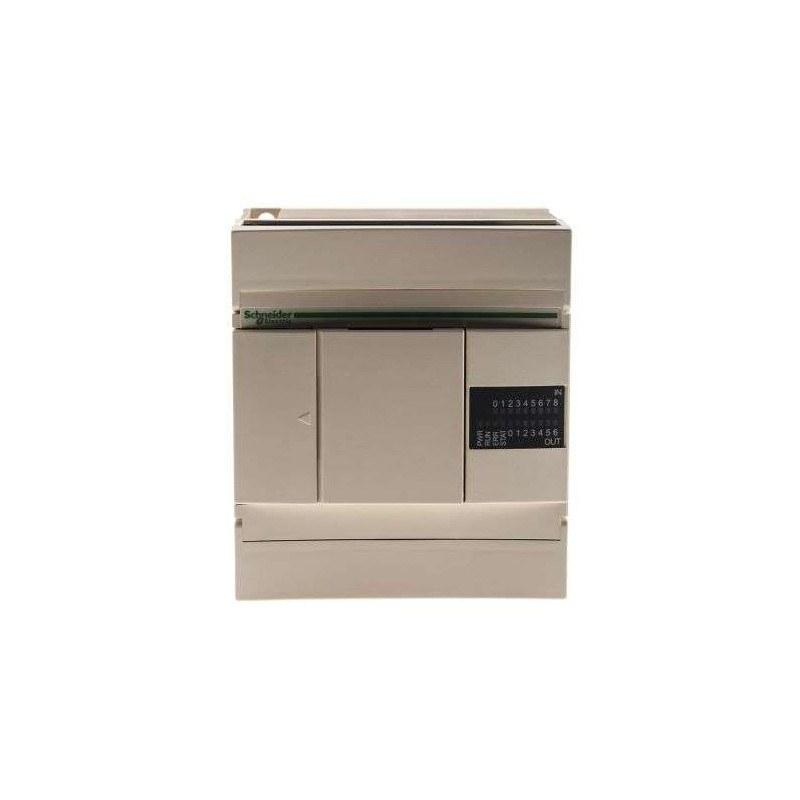

TWDLCAA16DRF Schneider Electric

Name: TWDLCAA16DRF Schneider Electric
Brand: BRT ENTERPRISES
Price: 23000.0 INR
Availability: InStock

Price 23000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TWDLCAA16DRF Schneider Electric Specification

Efficiency
Max power consumption is 31 VA at V

Surface Finish
matte

Power Factor
Max power consumption is 31 VA at V

Mounting Type
35 mm symmetrical DIN rail or plate/panel mount

Insulation Material
Plastic housing; 1500 Vrms insulation between channel and logic

Connector Type
Non-removable screw terminal block

Humidity %
30% to 95% (Relative, non-condensing)

Overheating Protection
YES

Shape
Rectangular compact module

IP Rating
IP20

Operating Temperature
0 to 55 C Celsius (oC)

Feature
Extendable with up to 4 expansion modules; integrated RS485 Modbus serial link

Product Type
Extendable Compact Base Controller (PLC)

Power Rating
Maximum power consumption is 31 VA

Application
Industrial automation, material handling, and packaging.

Protection Level
Other

Frequency (MHz)
60 Hertz (HZ)

Energy Consumption
22 to 31 Electron-volt ( eV)

Output Type
Relay

Color
White

Dimension (L*W*H)
80x70x95 Millimeter (mm)

Usage & Applications
Industrial automation, HVAC, material handling, and small-scale machine control.

Weight
0.37784 Kilograms (kg)

Rated Voltage
100 to 240 V AC (limits: to V) Volt (V)

Warranty
1 year

Cable Type
Standard industrial control/power cable (up to mm / 16 AWG)

Input Voltage
100 to 240 V AC (limits: to V) Volt (V)

Size
80x70x95 mm

Phase
Single Phase

Display Type
LED status indicators (PWR, RUN, ERR, STAT, I/O)

No Of Poles
16

Conductor
Compatible with solid or stranded copper wires

Connection Type
Non-removable screw terminal block

Features
Integrated RS485 Modbus port, expandable memory (with optional cartridge), and 9 inputs/7 relay outputs.

Frequency
50/60 Hertz (HZ)

Rated Current
0.25 A (at 240V) to 0.5 A (at 100V) Volt (v)

Material
Plastic housing (Polyamide)

TWDLCAA16DRF Schneider Electric Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
15 Days

About TWDLCAA16DRF Schneider Electric

It is a programmable logic controller (PLC) designed for automation in industrial, infrastructure, and building sectors, such as material handling and packaging.The

Schneider Electric TWDLCAA16DRF

is an extendable compact base controller from the Twido range. It is a programmable logic controller (PLC) designed to provide a flexible and cost-effective solution for small to mid-sized automation systems in industrial and building sectors.
